| Section |
Description |
| Loading Unit |

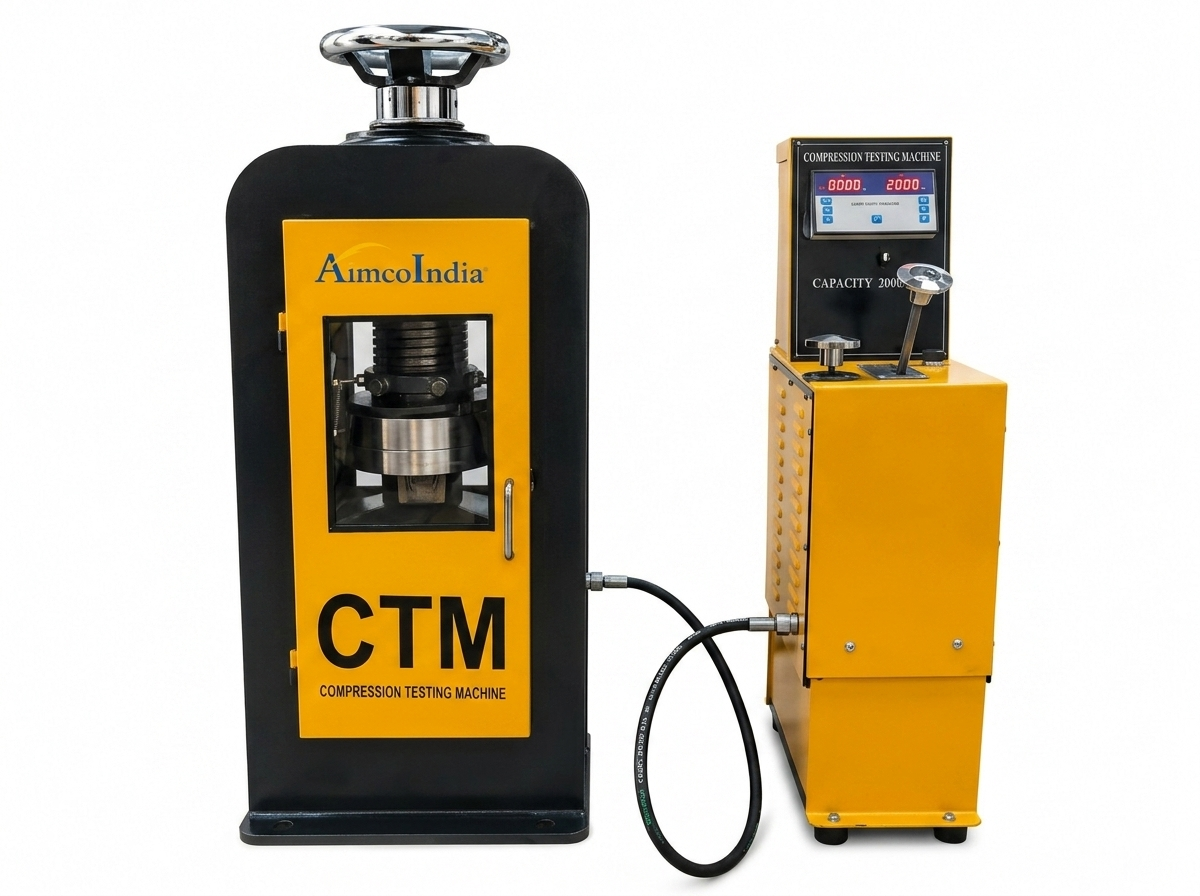

Digital Compression Testing Machines are manufactured with a fully welded construction consisting of a cross head, rigid base, and side channels for enhanced strength and stability. The hydraulic jack is securely fixed to the machine base for reliable performance. Suitable spacers are provided to facilitate testing of specimens of various sizes conveniently. |
| Pumping Unit |
The machine is equipped with an electrically operated hydraulic pumping unit. The applied load is measured through a Digital Indicator calibrated against certified proving rings for dependable accuracy. The system is supplied with an electrically operated hydraulic power pack for smooth testing operations. |
| Technical Specifications |
- Type of Pumping: Hydraulic electrically operated pump.
- Digital Indicator: 4 × 20 line Digital Indicator with peak load facility.
- Loading Range: 2000 kN.
- Least Count: 1 kN.
- Accuracy: ± 2%.
- Ram Diameter: 210 mm.
- Ram Travel: 50 mm.
- Platen Diameter: 200 mm.
- Power Supply: 240 VAC, 50 Hz.
|
