Description

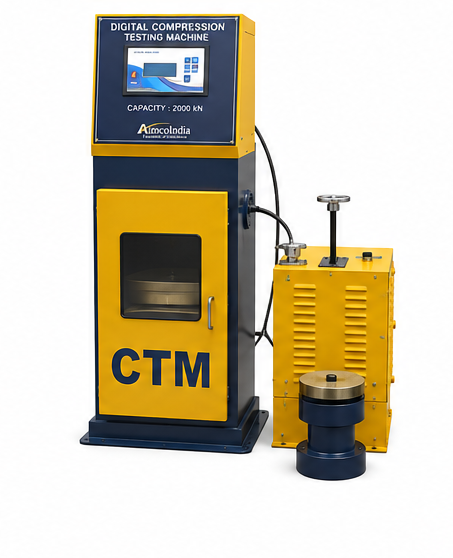

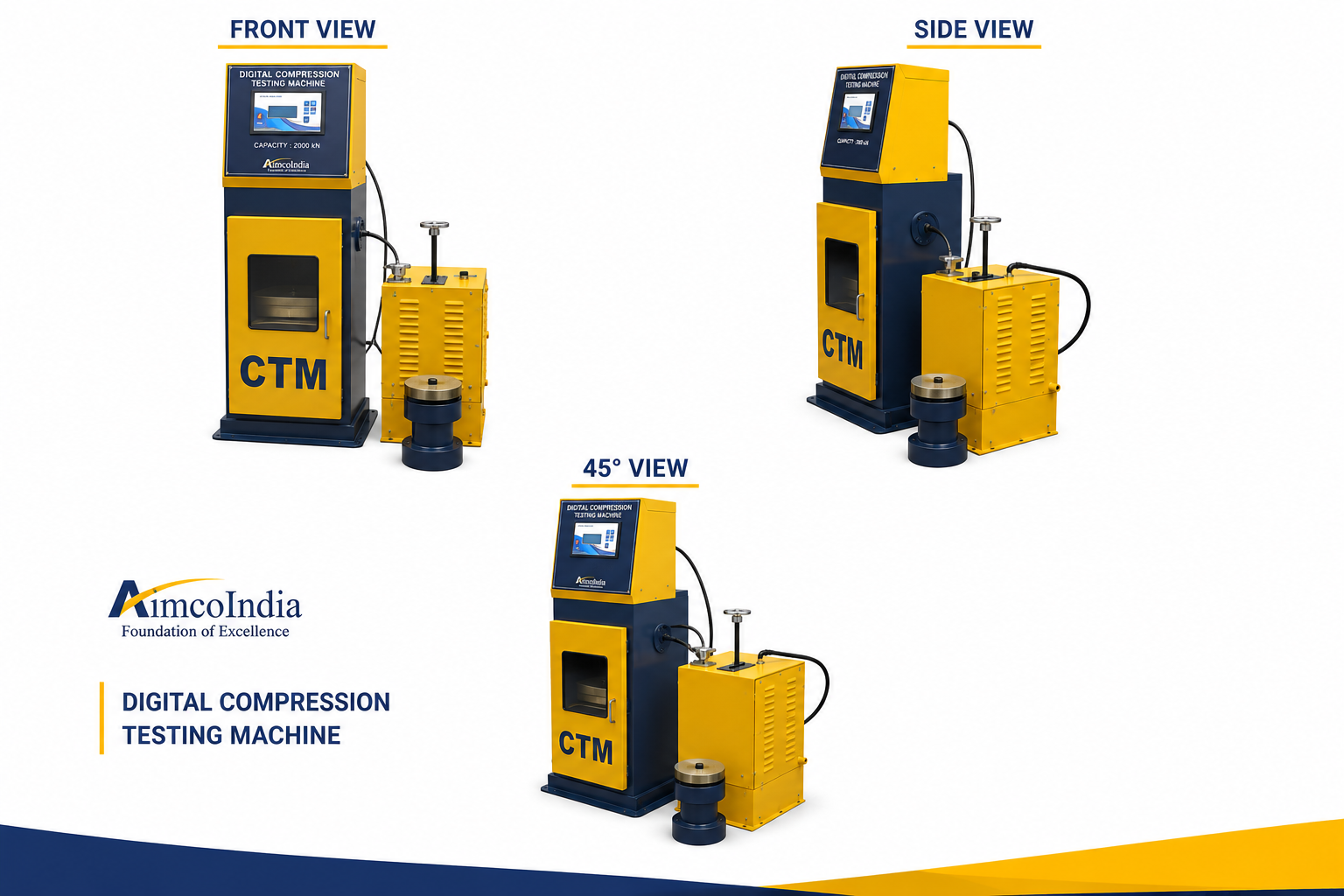

| Digital Compression Testing Machine | |
|---|---|
| Loading Unit | |
| The loading unit is of fully welded construction having a cross head, base and solid side plates. The hydraulic jack is fixed to the base. The platens of the machine are hardened, ground and polished. The upper platen is provided with self-aligning action. To facilitate testing of various size specimens, suitable sized spacers are provided. |
|
| Pumping Unit | |
| Electrically operated pumping unit. The loads are measured on a Digital Indicator calibrated against certified proving rings. Electrically operated hydraulic power pack. |
|
| Technical Specifications | |
| Type of Pumping | Hydraulic Electrically Operated Pump |
| Digital Indicator | 4 × 20 Line Digital Indicator with Peak Load Facility |
| Loading Range | 2000 kN |
| Least Count | 1 kN |
| Accuracy | ± 1 % |
| Ram Diameter | 210 mm |
| Ram Travel | 50 mm |
| Platen Diameter | 200 mm |
| Power Supply | 240 VAC, 50 Hz |
| Ordering Details | |
|---|---|
| Model No. | Description |
| AI-190 | Digital Compression Testing Machine, Capacity 250 kN |
| AI-191 | Digital Compression Testing Machine, Capacity 500 kN |
| AI-192 | Digital Compression Testing Machine, Capacity 1000 kN |
| AI-193 | Digital Compression Testing Machine, Capacity 2000 kN |
| AI-194 | Digital Compression Testing Machine, Capacity 3000 kN |
