| Section |
Description |
| Reference Standards |
IS:10078, EN 196-1, EN 13454-2 |
| Description |

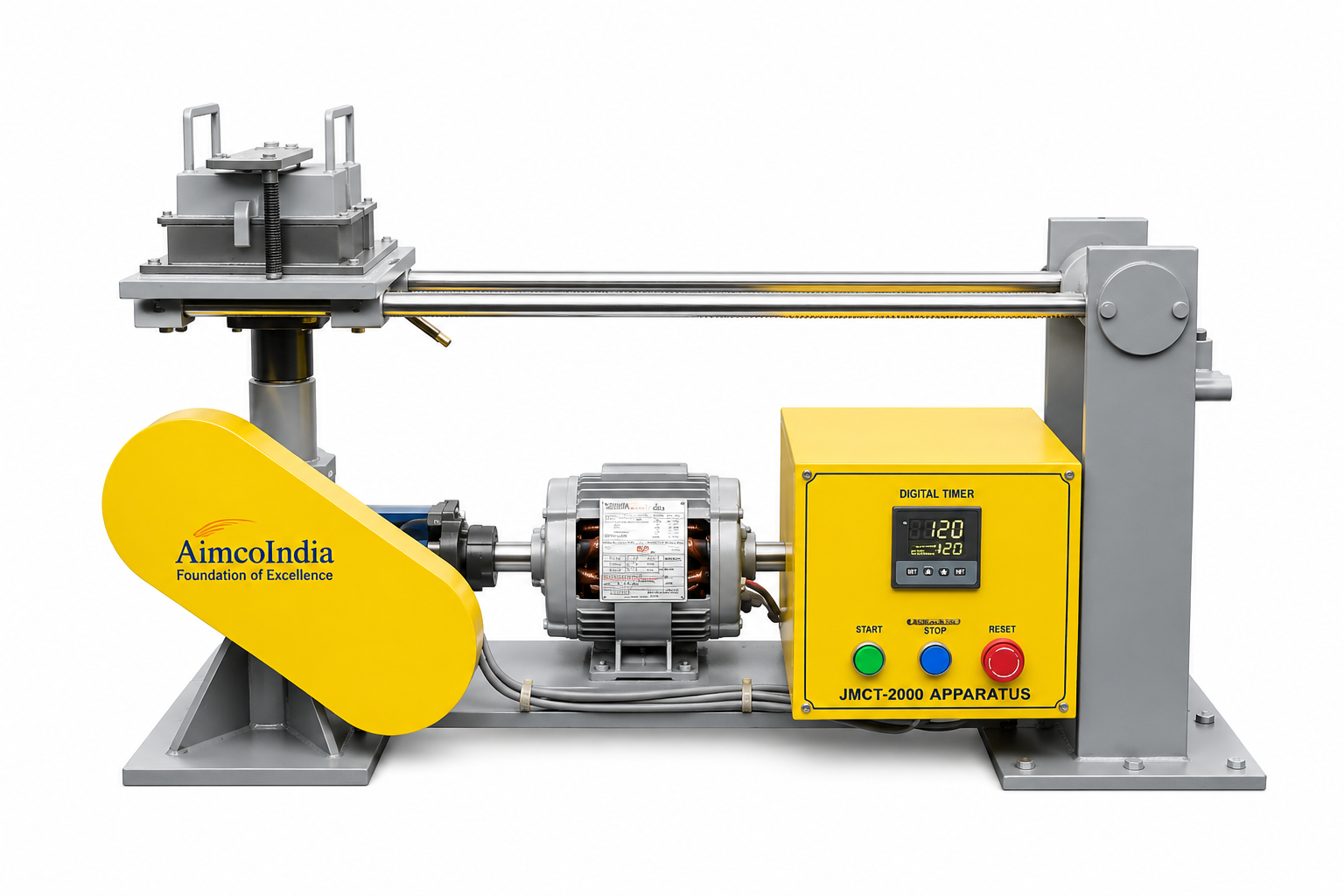

The Jolting Apparatus consists of a rectangular table rigidly connected by two support arms to a spindle at a horizontal distance of 800 mm from the centre of the table. The table can be raised and allowed to fall freely by a cam connected to a motor. The cam rotates at a speed of 60 RPM. |
| Features |
- Digital counter with sensor provided.
- Machine stops automatically after 60 jolts.
- Locating pins provided for mounting mould compartments.
- Mould with hopper can be clamped rigidly to the table.
- Supplied complete with mould and hopper.
|
| Replaceable Parts |
- Counter
- Aluminum Hopper
- Jolting Mould
|
| Power Supply |
Suitable for operation on 220V, 50 Hz, Single Phase AC Supply. |
