Description
| Section | Description |
|---|---|

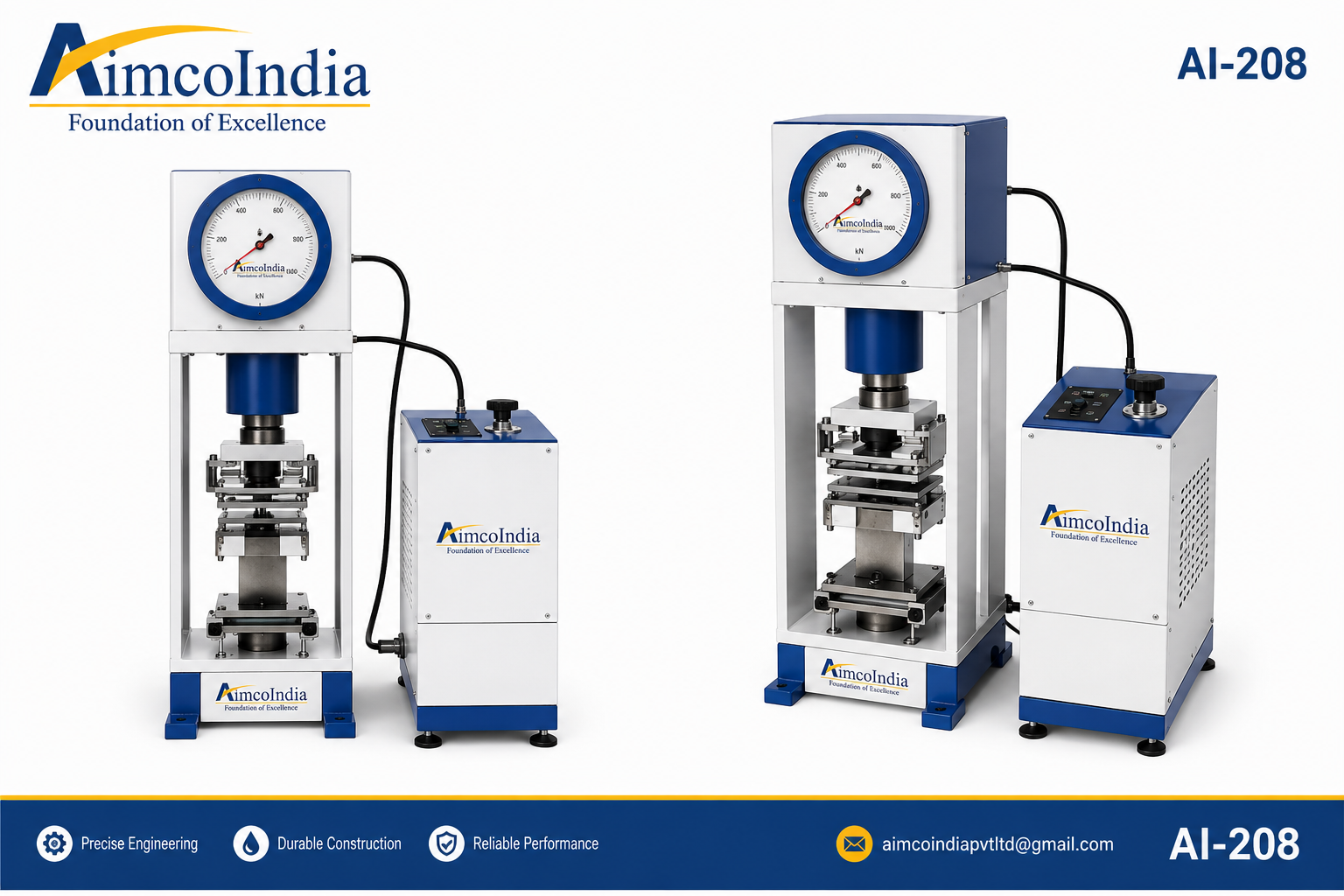

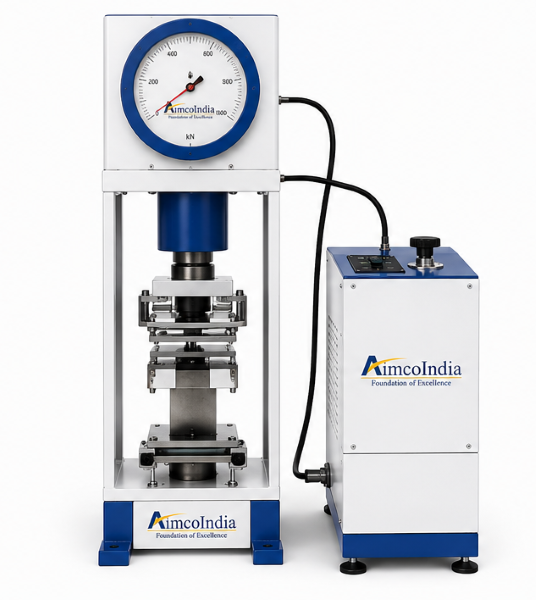

| Machine Description | The Flexure Strength Testing Machine is specially designed for determining the flexural strength of concrete beams. The machine construction provides maximum rigidity and stability throughout its complete working range for accurate and reliable testing performance.The load is applied through the downward movement of the hydraulic piston. Suitable spacers are provided for testing beams of different sizes conveniently. |
| Load Measurement | The applied load is indicated on a calibrated Bourdon Tube Type Load Gauge having a range of 0 – 100 kN with 0.5 kN least count.
The load gauge is calibrated against certified proving rings traceable to National Physical Laboratory (NPL) / National Council for Cement and Building Materials (NCCBM). |
| Power Supply | Suitable for operation on 220V, 50Hz, Single Phase AC supply (for electrically operated Flexure Testing Machine). |
