Description
| Section | Description |
|---|---|
| Reference Standards | IS:7320, BS:1881, ASTM C143 |

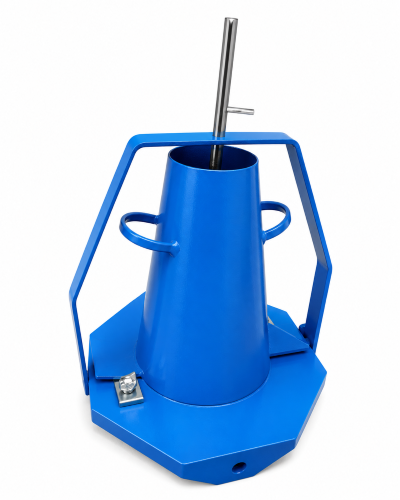

| Test Procedure | The slump test apparatus is used to determine the consistency and workability of freshly mixed concrete. The test is carried out by filling the slump cone with fresh concrete in three equal layers, each layer being compacted with a steel tamping rod.After filling, the concrete surface is levelled with the top of the cone. The slump cone is then carefully lifted vertically upward, and the slump of the concrete specimen is immediately measured. |

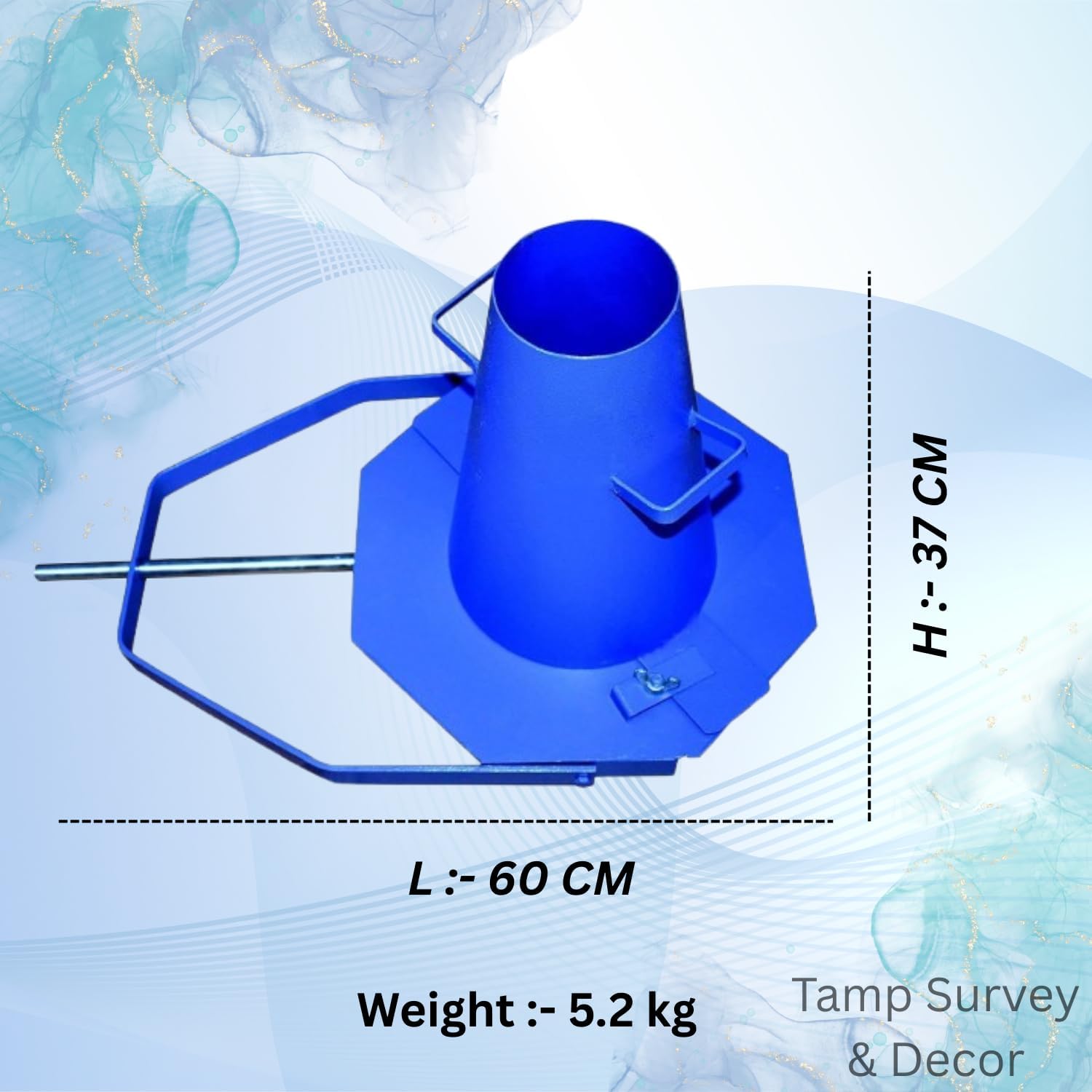

| Slump Cone Dimensions | Cone with 200 mm base diameter, 100 mm top diameter, and 300 mm height. |
| Tamping Rod | Steel tamping rod of 16 mm diameter and 600 mm length. |
