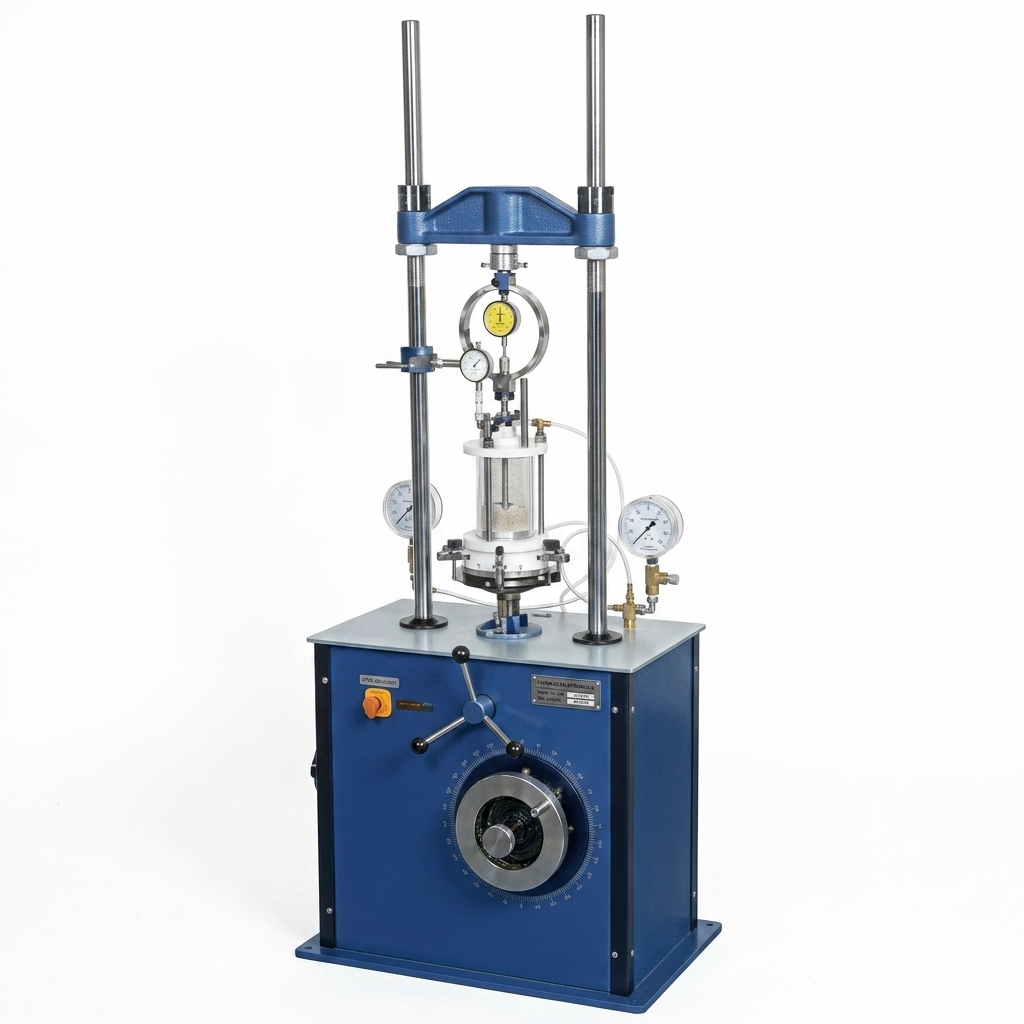

Triaxial Test Apparatus
Triaxial Test Apparatus - Image 2

Triaxial Test Apparatus

Section Description
Loading Frame Features
  • Two pillar type construction.
  • Enclosed motor and gear system.
  • Jewel lamps indicating direction of motion.
  • Simple and easy operation.
Universal Triaxial Cell Stationary bushing type triaxial cell suitable for testing specimens of 38 mm diameter × 76 mm long.

The triaxial cell consists of a Perspex chamber fitted with an anvil and loading plunger.
The chamber can be easily opened by releasing four tie rods and is leak-proof up to 10 bar pressure (10 kg/cm²).
Triaxial Electronic Conversion Kit Used for maintaining constant lateral pressure on triaxial test specimens throughout the testing period.

The system is provided with two air-water interface chambers having individual pressure regulators for accurate outlet pressure control at desired pressure levels.

Suitable air compressor should be supplied separately with the apparatus.
Measurement System
  • Direct reading of strain, load, and pore pressure.
  • External Load Cell – 10 kN capacity.
  • Pore Pressure Transducer – 20 bar (20 kg/cm²) capacity.
  • LVDT (Displacement Sensor) with 0–20 mm measuring range.
Power Supply Suitable for operation on 220 V, 50 Hz, Single Phase AC supply.
Request a Quote WhatsApp Now
Category: Brand:

Description

Section Description
Loading Frame The Motorized Loading Frame (50 kN capacity) is highly versatile and specially designed for conducting triaxial shear tests on soil and rock specimens.

The unit consists of a sturdy cabinet housing the motor and gear system mounted on a heavy-duty angle iron frame.
Loading is applied through the bottom loading platen carried on a lead screw arrangement moving upward.

The top load bracket slides over two upright pillars and can be adjusted to any required height and securely locked in position.
The bracket is fitted with a screw adaptor suitable for standard proving rings or load cells.

The loading section is detachable from the main unit for convenient transportation and protection of tension rods from damage.
Rates of Strain 6 fixed strain speeds provided for accurate testing operations.
Power Supply Suitable for operation on 220 V, 50 Hz, Single Phase AC supply.
Replaceable Parts Supplied
  • Top loading pad, Perspex, 38 mm dia – 1 No.
  • Plain Perspex disc, 38 mm dia × 6 mm thick – 1 Pair.
  • Porous stone, 38 mm dia × 6 mm thick – 1 Pair.
  • Sheath stretcher for 38 mm dia specimen – 1 No.
  • Sand former for 38 mm dia specimen – 1 No.
  • Rubber sheath for 38 mm dia specimen – 12 Nos.
  • Drainage tube (short), 38 mm – 4 Nos.
  • Drainage tube (long), 38 mm – 4 Nos.
  • ‘O’ rings for 38 mm dia specimen – 8 Nos.
  • Brass pedestal, 38 mm dia – 1 No.
  • Split Mould, 38 mm dia × 76 mm long – 1 No.
  • Top loading pad 38 mm (plain) – 1 No.
Constant Pressure System Air-water type constant pressure system with two cells for maintaining constant lateral pressure on triaxial test specimens throughout the test duration.

The equipment is provided with two air-water interface chambers having individual pressure regulators to control outlet pressure at desired pressure levels.

Suitable air compressor should be supplied separately with the apparatus.
Application Used for soil testing and triaxial shear testing applications.

Additional information

Material Type

Soil Testing
