Description
Casagrande Method Ref. Standards: IS:2720 (Part 5), IS:9259, BS 1377 Mechanical method known as the Casagrande Method has been a standardised test in Soil Mechanics for many years.
• High quality of design ensures consistency of results
• Satisfies International Standards
• Motorised model with integral blow counter is also available

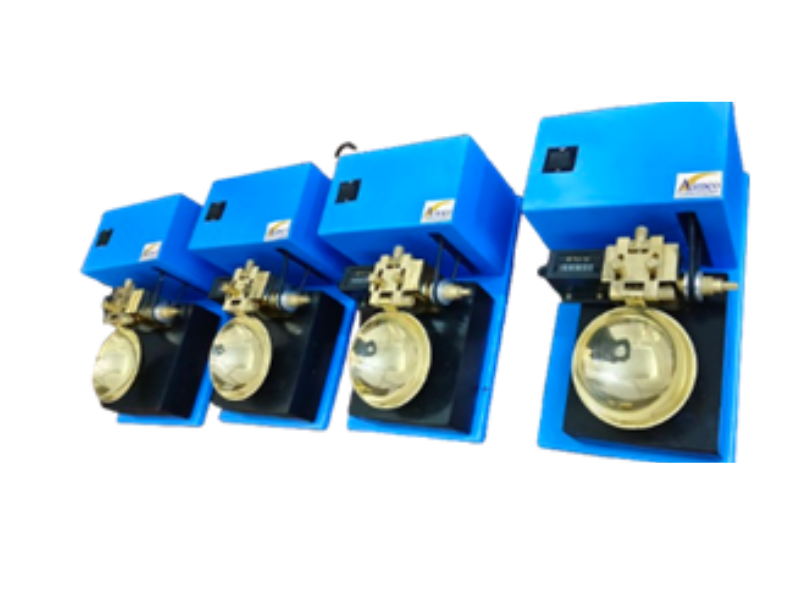

The Liquid Limit Device consists of a hard rubber base carrying a sliding carriage assembly to which a brass cup is hinged. The cup is raised and allowed to fall through a height of 1 cm on to the hard rubber base, with the help of a lead screw provided at the back of the sliding carriage. Supplied complete with Casagrande Grooving Tool and Gauge Block (Type A of IS : 9259). Suitable for operation on 220 V, 50 Hz, single phase, AC supply
Ordering Details:
| Model | Description |
| AIS-300 | Liquid Limit Motorized |
| AIS-301 | Liquid Limit Hand Operated |
