California Bearing Ratio

California Bearing Ratio

Section Description
Reference Standards IS: 2720 (Part XVI), BS 1377, BS 1924, EN 13286-47, ASTM D1883, AASHTO T193
Machine Description The California Bearing Ratio (CBR) Test Apparatus is designed for determining the relative bearing ratio and expansion characteristics of base, sub-base, and subgrade soils under known surcharge weights for the design of roads, pavements, and runways.

The CBR test is an empirical method originally developed in California, USA and is widely used for material selection and subgrade quality control in highway engineering applications.

The test can be conducted both in laboratory conditions on prepared soil specimens as well as in-situ at site locations.

Since the test is empirical in nature, it is specifically applicable for highway and pavement thickness design purposes.
Salient Features
  • Compact bench-top design.
  • Rapid platen adjustment facility.
  • Options available for mechanical or electronic measurement.
Power Supply Suitable for operation on 220 V, 50 Hz, Single Phase AC supply.
Request a Quote WhatsApp Now
Category: Brand:

Description

Section Description
Product Description Laboratory California Bearing Ratio (CBR) Test Apparatus, Motorised, Three Speed model designed for determining the bearing ratio and strength characteristics of soil specimens for pavement and road construction applications.
Reference Standards IS:9669, IS:2720 (Part XVI), BS 1377, BS 1924, EN 13286-47, ASTM D1883, AASHTO T193

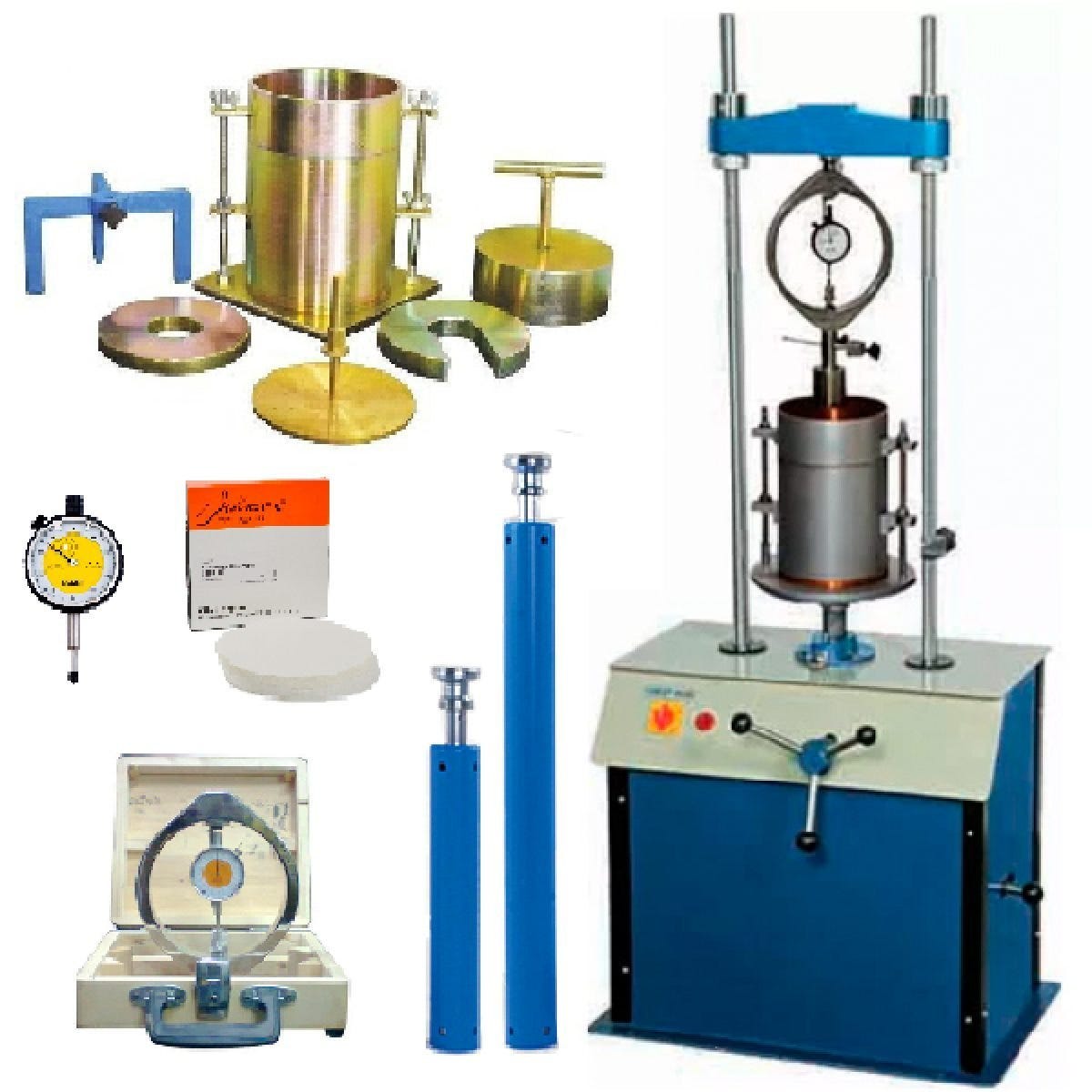

Main Equipment
  • Load Frame, 50 kN Capacity, Three Speeds – 1.5, 1.25 & 2.5 mm/min.
  • MS Mould ID 150 × 175 mm with perforated base plate and extension collar.
  • Penetration Piston, 50 mm face diameter.
  • Adjustable Bracket for Penetration Dial Gauge.
  • Circular Metal Spacer Disc with detachable handle, 148 mm dia × 47.7 mm height.
  • Annular Metal Weight, 2.5 kg, 147 mm dia with 53 mm central hole.
  • Slotted Metal Weight, 2.5 kg, 147 mm dia with 53 mm slot.
  • Perforated Plate, 148 mm dia with adjustable stem and lock nut.
  • Metal Tripod for Dial Gauge.
  • Cutting Collar.
  • Rammer 2.6 kg with 310 mm controlled drop.
  • Rammer 4.9 kg with 450 mm controlled drop.
  • Proving Ring, 50 kN Capacity.
  • Dial Gauge, 25 mm travel × 0.01 mm least count.
AI-38401 Electronic Outfit
  • Digital Indicator – 1 No.
  • Load Cell, 50 kN Capacity – 1 No.
  • Displacement Sensor, 25 mm – 1 No.

Additional information

Material Type

Soil Testing
