| Reference Standards |
IS:2720 (Part 13), BS 1377, ASTM D 3080 |
| Specimen Size Compatibility |
Suitable for soil specimens of size 60 × 60 × 25 mm |

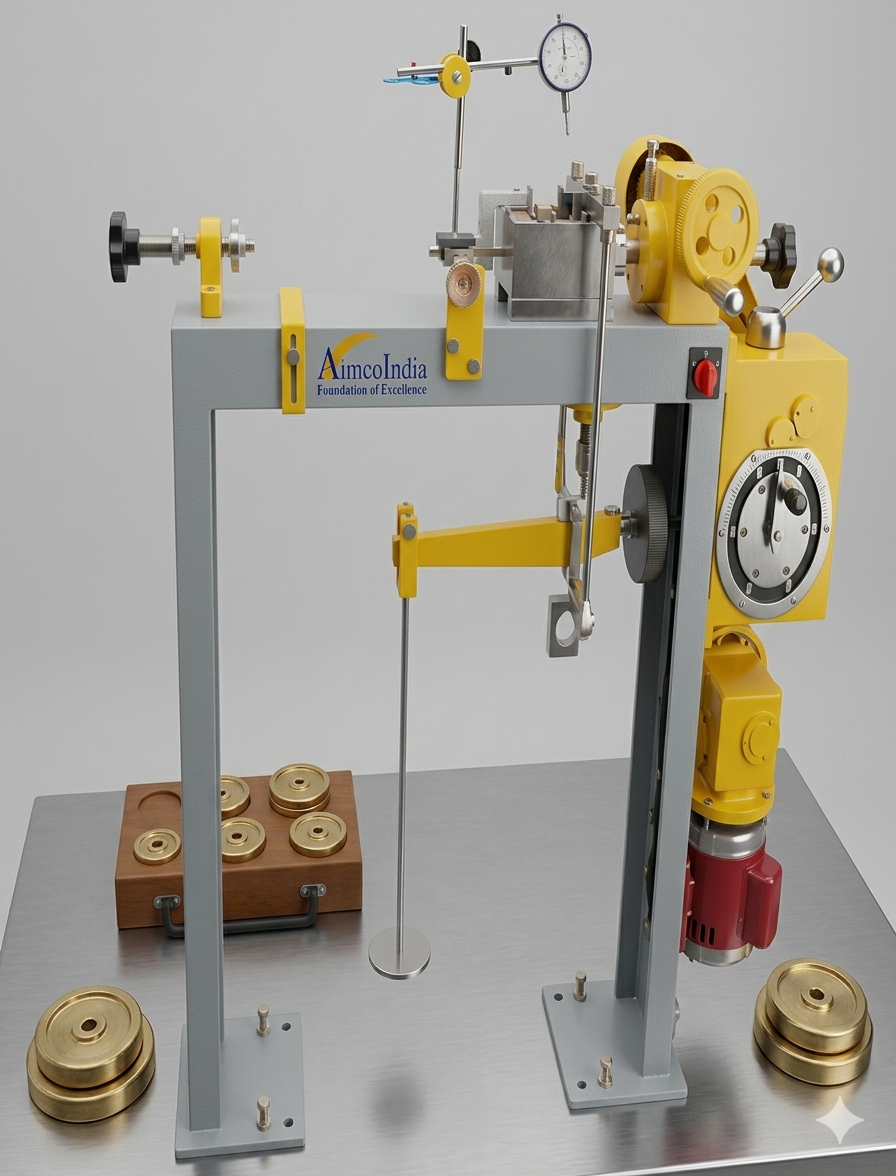

| Shear Box Design |
Square-shaped container divided horizontally into two separate sections to facilitate a shear failure along their junction. |
| Normal Loading Mechanism |
- Applies a constant normal load using a pre-calibrated counter-balanced load yoke.
- Features a direct and 2-lever system.
- Maximum Capacity: Up to 3 kg/cm²
|
| Shear Stress Application |
An increasing horizontal force is applied via a lead screw connected directly to the shear box housing. Strain rates are managed by altering the horizontal speed. |
| Housing & Track Support |
The shear box housing rests and glides smoothly on built-in V-strips. |
| Gauge & Sensor Fixtures |
Includes dedicated fixtures for mounting a proving ring, alongside brackets for holding consolidation and strain dial gauges. |
| Electrical Power Requirement |
220V, 50Hz, Single-phase, AC Supply |
