Description
| Section | Description |
|---|---|
| Application | Designed for field classification of cohesive soils in terms of consistency, shear strength, and approximate unconfined compressive strength. |
| AI-395 Standard Model | Measuring range: 0 to 4.5 kgf/cm².

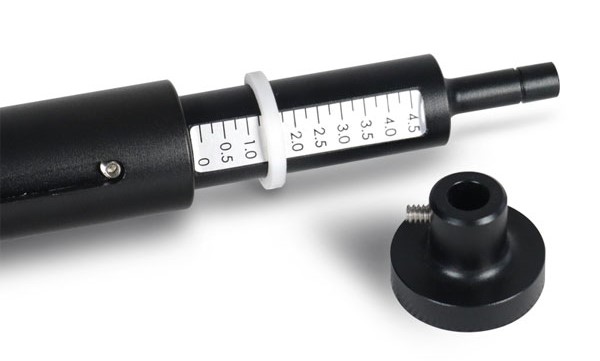

A special 1-inch diameter adapter foot is available optionally for use in very sensitive soils. Constructed from anodized aluminum with dimensions approximately 6-1/4″ length × 7/8″ diameter. The stainless steel pin can be loosened using an Allen wrench for easy cleaning and maintenance. |

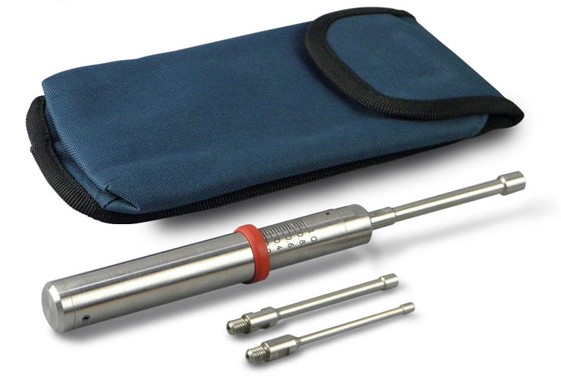

| AI-396 Heavy Duty Model | Heavy-duty all stainless steel construction supplied complete with plastic carrying case.
Provided with three interchangeable tips:
Measuring range: 0 to 10 kgf/cm². Dimensions (assembled): Approx. 210 mm length × 20 mm diameter. |
