Plate Bearing Test

Section Description
Reference Standard IS:1888
Application The Plate Bearing Test is essentially a model test of foundations used for determining the load-deformation characteristics and ultimate bearing capacity of soils.

This test is widely accepted as a standard method for evaluating soil bearing capacity, and the results obtained are commonly used for comparison and calibration of other soil testing methods.

In this method, a steel bearing plate is subjected to gradually increasing loads while the corresponding settlement of the plate is observed and recorded.

The Ultimate Bearing Capacity of the soil is determined at the point where the settlement increases rapidly with a small increment in load.

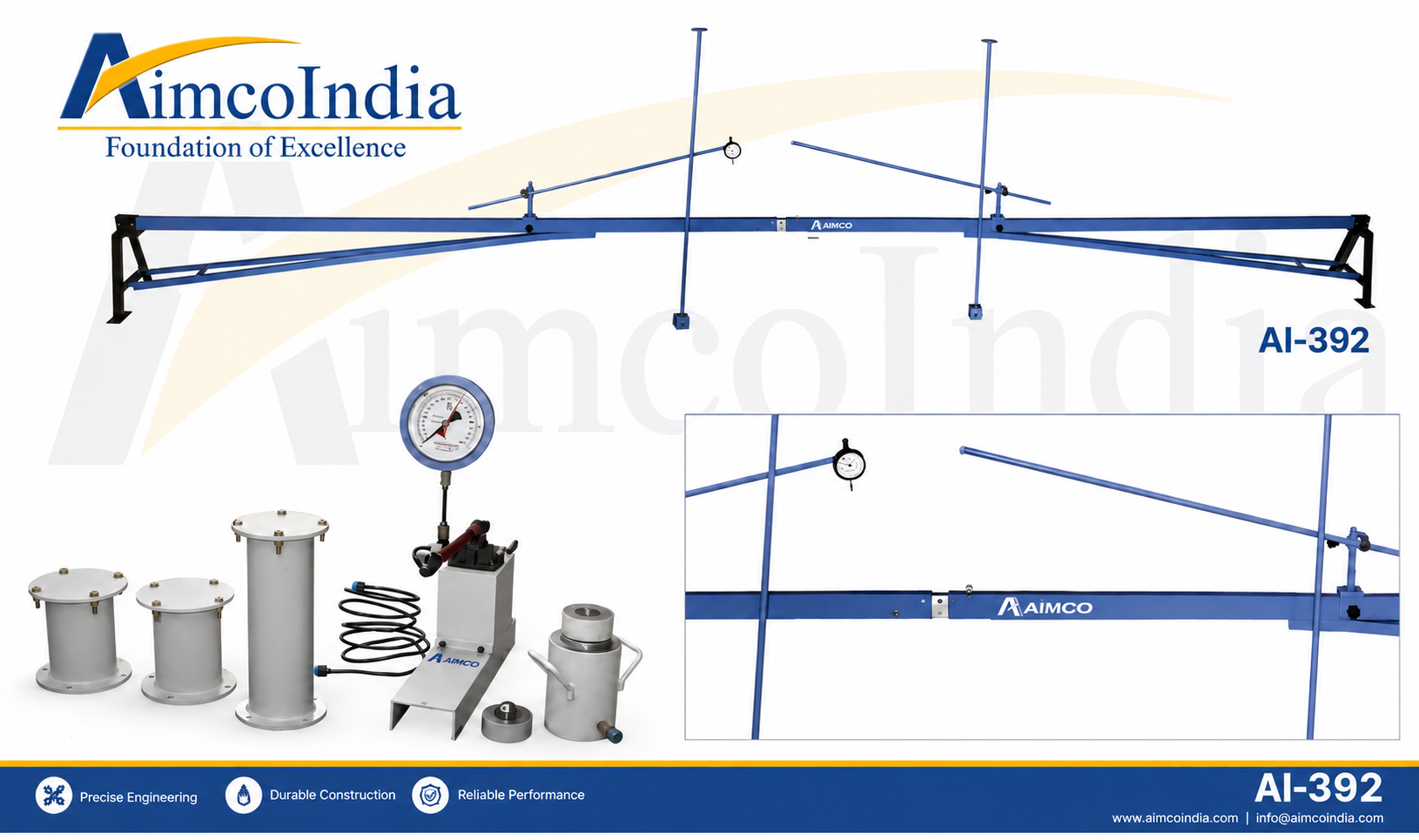

Plate Bearing Test Apparatus Complete apparatus designed for conducting plate bearing tests on soil for foundation and pavement investigations.
Request a Quote WhatsApp Now
Category: Brand:

Description

Component Specification
Hand Operated Hydraulic Jack Capacity 500 kN (50,000 kgf) – 1 No.
Hydraulic Hand Operated Pump With 200 mm dia load gauge, capacity 500 kN (50,000 kgf) – 1 No.
High Pressure Flexible Metallic Pipe 5 meter length – 1 No.
Ball and Socket Arrangement Consisting of two steel plates with one steel ball in-between – 1 No.
Extension Rod 12 mm dia × 25 cm long for dial gauge readings – 16 Nos.
Magnetic Base With female thread for holding extension rod – 4 Nos.
Top End Plate 50 mm dia with male thread for positioning dial gauge plunger – 4 Nos.
Column (Short) 15 cm dia × 25 cm long with flanges, complete with bolts and nuts – 2 Nos.
Column (Long) 15 cm dia × 50 cm long with flanges, complete with bolts and nuts.
Datum Bar Lightweight portable datum bar with total span 5 m and approx. 30 cm height, mounted on two removable legs.

Made in two parts with provision for using 2.5 m span datum bar.
Supplied complete with spare leg and two quick release clamps for positioning and holding dial gauge brackets – 2 Nos.
Anchor Spikes 10 Nos.
Quick Release Clamp For positioning dial gauge bracket.
Dial Gauge 25 mm travel, 0.01 mm least count – 4 Nos.
