| Reference Standards |
IS:2720 (Part 7 & Part 8) |
| Operation Mechanism |

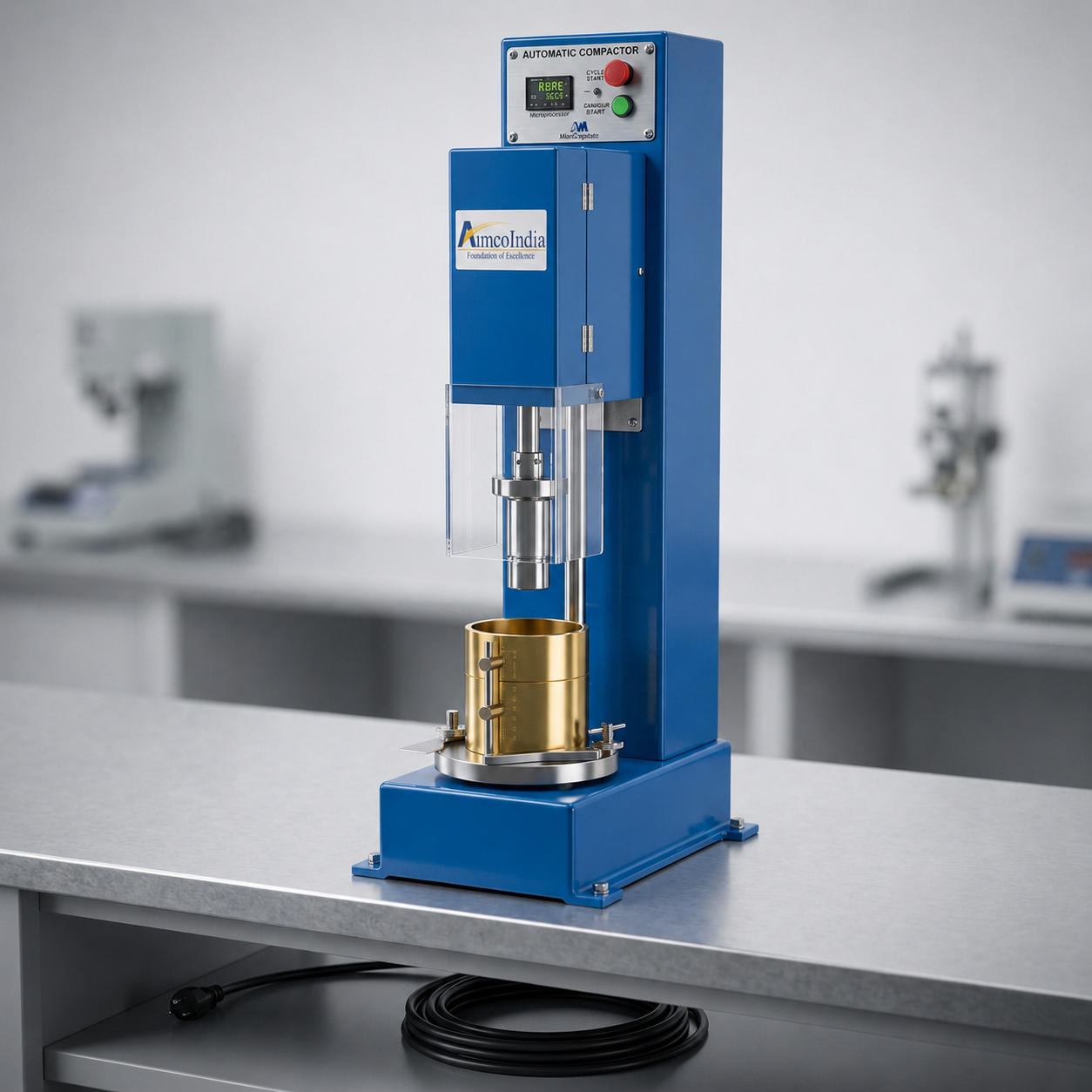

Motor-driven, automatic mechanical compaction (eliminates tedious hand compaction processes). |
| Mould Compatibility |
Suitable for soil compaction inside 100 mm or 150 mm diameter moulds (including CBR testing). |
| Compaction Action |
The circular rammer travels across the surface area while the base table automatically rotates the mould in uniform, equal steps. |
| Blow Control |
Pre-settable blow counter allows operators to configure the exact number of blows per layer before beginning a test. |
| Rammer Specifications |
- Face Design: 50 mm diameter, circular face
- Adjustable Weight: 2.6 kg (Standard) or 4.9 kg (Heavy)
|
| Stroke Length (Drop) |
Adjustable to either 310 mm or 450 mm drop heights. |
| Electrical Requirements |
220 V, 50 Hz, Single Phase, AC Supply |
